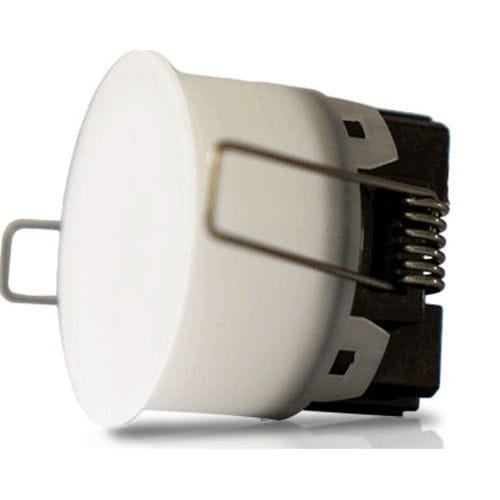

Spot per illuminazione d'esterni SMARTSPOT 50 ON-OFF

per illuminazione d'interniper barcadelle luci

Présentation
SMARTSPOT 50 ON-OFF. The ultimate recessed downlight generation with embedded electronics, latest generation LED and smart functions.

Ghost shape
Thanks to an adaptive shape it can be installed both with an additional classic frame or totally without frames, offering the possibility of being invisible when turned off. The frame can be customizable and is to be ordered separately if required.

Homogeneous light surface
The technological material used for the lens delivers an incredibly homogeneous enlightened surface; when the downlight is turned off it completely hides all internal components for an elegant, clean appearance.

Powerful light
The light is emitted by 8 OSRAM LEDs arranged according to a luminous flux study to obtain optimal results. Standard white temperature is 3.000K but can be customized on request.

No galvanic currents / Materials and corrosion resistance
The total plastic body eliminates the risk of galvanic current generation and potential corrosion, making the downlight safe for marine use and preserving a like-new appearance.

Fade in / fade out effect
Both turning ON and turning OFF phases occur with a smooth fade in / fade out effect to soften light changes and keep the eyes relaxed.

Electronics and protections
Designed with automotive-certified components to resist battery voltage peaks. Device features automatic shut-off to prevent damage in case of overvoltages and includes protections vs polarity reverse, overheating, short circuits, electrostatic charges and voltage peaks. The device is rated to automatically shut down from 32Vdc up to 60Vdc to prevent damage.

Compact and super light
SMARTSPOT downlights have a total height of just 44.4 mm, enabling installation in limited spaces. The use of plastics in the screen and heatsink reduces weight and the impact on ceilings.

IP68 and marine suitability
Degree of protection IP68 allows installation in internal rooms and external corridors; suitable for 24Vdc systems (and for 230Vac with an additional PSU).

Additional features

• True deep dimming: dimmable from 100% to 0% with a real (non-PWM) dimming mode for smooth intensity changes.
• Overheating protection that turns the system off if required.
• EMC compliance and robust testing to minimize interference with on-board systems.

Caractéristiques / spécifications techniques

• Product name: SMARTSPOT 50 ON-OFF
• Product code: SLMXWHI01
• Luminous intensity: 400 lm (WHITE)
• Light source: 8 OSRAM LEDs
• Standard light colour: White 3.000K (Warm white) — other white temperatures available on request
• Power supply: 24Vdc
• Output power: 4,8 W
• Absorption: Max 0,20 A @ 24Vdc
• Driver type: internal (embedded electronics)
• Dimmable: Yes, with true deep dimming mode (100% to 0%)
• Fade in / Fade out effect: Yes
• System typology: Standard
• Operating modes: ON/OFF and dimming
• Protections: polarity reverse, overheating, short circuits, electrostatic charges, voltage peaks
• Resistance to voltage peaks: 60 Vdc (from 32Vdc up to 60Vdc the device automatically shuts down to prevent damages)
• Lens material: Technological plastic
• Heatsink material: Dissipative plastic
• Body material: Total plastic body (prevents galvanic currents and corrosion)
• Waterproof: IP68
• Projector dimensions: Diameter 50 mm x thickness 44,4 mm
• Compliances: RoHS 2011/65/EU; Electromagnetic compatibility: 2014/30/EU
